| Size | PCD | Hub Diameter | Offset | Alt. Stud Pattern | Load Rating | |
|---|---|---|---|---|---|---|
| 13″ | ||||||
| 13″ x 5.5″ | 4/140 | 108 | 14 | 650KG | Select | |
| 13″ x 5.5″ | 5/108 | 75 | 15 | 650KG | Select | |
| 13″ x 5.5″ | 5/114.3 | 84 | 0 | 650KG | Select | |
| 14″ | ||||||
| 14″ x 6″ | 4/140 | 108 | 14 | 950KG | Select | |
| 14″ x 6″ | 5/108 | 75 | 15 | 950KG | Select | |
| 14″ x 6″ | 5/114.3 | 84 | 10 | 950KG | Select | |
| 14″ x 6″ | 5/120.65 | 75 | 0 | 950KG | Select | |
| 14″ x 6″ | 6/139.7 | 108 | 10 | 950KG | Select | |
| 15″ | ||||||
| 15″ x 6″ | 5/108 | 75 | 10 | 5 | 1120KG | Select |
| 15″ x 6″ | 5/114.3 | 75 | 0 | 5 | 1120KG | Select |
| 15″ x 6″ | 5/114.3 | 84 | 20 | 1120KG | Select | |
| 15″ x 6″ | 5/139.7 | 111 | 0 | 1120KG | Select | |
| 15″ x 6″ | 6/139.7 | 111 | 10 | 1120KG | Select | |
| 15″ x 7″ | 5/114.3 | 84 | 0 | 1120KG | Select | |
| 15″ x 7″ | 5/120.65 | 75 | 0 | 1120KG | Select | |
| 15″ x 7″ | 5/139.7 | 111 | 10 | 1120KG | Select | |
| 15″ x 7″ | 5/139.7 | 111 | -13 | 1120KG | Select | |
| 15″ x 7″ | 5/165.1 | 125 | 0 | 1120KG | Select | |
| 15″ x 7″ | 6/139.7 | 111 | 10 | 1120KG | Select | |
| 15″ x 7″ | 6/139.7 | 111 | -13 | 1120KG | Select | |
| 15″ x 8″ | 5/114.3 | 75 | -13 | 1120KG | Select | |
| 15″ x 8″ | 5/139.7 | 111 | -23 | 1120KG | Select | |
| 15″ x 8″ | 6/139.7 | 111 | 0 | 1120KG | Select | |
| 15″ x 8″ | 6/139.7 | 111 | -23 | 1120KG | Select | |
| 15″ x 10″ | 5/139.7 | 111 | -44 | 1120KG | Select | |
| 15″ x 10″ | 6/139.7 | 111 | -44 | 1120KG | Select | |
| 16″ | ||||||
| 16″ x 6″ | 5/150 | 113 | 0 | 1400 | Select | |
| 16″ x 6″ | 6/139.7 | 111 | 0 | 1200 | Select | |
| 16″ x 7″ | 5/114.3 | 84 | 18 | 1200 | Select | |
| 16″ x 7″ | 5/139.7 | 111 | 10 | 1200 | Select | |
| 16″ x 7″ | 5/139.7 | 111 | -13 | 1200 | Select | |
| 16″ x 7″ | 5/150 | 113 | 0 | 1400 | Select | |
| 16″ x 7″ | 5/165.1 | 125 | 0 | 1200 | Select | |
| 16″ x 7″ | 6/114.3 | 66.1 | 18 | 1200 | Select | |
| 16″ x 7″ | 6/139.7 | 111 | 10 | 1200 | Select | |
| 16″ x 7″ | 6/139.7 | 111 | 25 | 1200 | Select | |
| 16″ x 7″ | 6/139.7 | 111 | 30 | 1200 | Select | |
| 16″ x 7″ | 6/139.7 | 111 | -13 | 1200 | Select | |
| 16″ x 8″ | 5/150 | 113 | 0 | 1400 | Select | |
| 16″ x 8″ | 5/165.1 | 125 | 0 | 1200 | Select | |
| 16″ x 8″ | 6/139.7 | 111 | 20 | 1200 | Select | |
| 16″ x 8″ | 6/139.7 | 111 | -13 | 1200 | Select | |
| 16″ x 10″ | 5/150 | 113 | -32 | 1400 | Select | |
| 16″ x 10″ | 6/139.7 | 111 | -44 | 1200 | Select | |
| 17″ | ||||||
| 17″ x 7″ | 6/139.7 | 111 | 30 | 1200 | Select | |
| 17″ x 8″ | 5/150 | 113 | 0 | 1400 | Select | |
| 17″ x 8″ | 5/150 | 113 | 30 | 1400 | Select | |
| 17″ x 8″ | 6/114.3 | 66.1 | 18 | 1200 | Select | |
| 17″ x 8″ | 6/139.7 | 111 | -13 | 1200 | Select | |
| 17″ x 8″ | 6/139.7 | 111 | 30 | 1200 | Select | |
| 18″ | ||||||
| 18″ x 8″ | 5/150 | 113 | 30 | 1600 | Select | |
| 18″ x 8″ | 6/139.7 | 111 | 30 | 1600 | Select | |
Fitments
Description

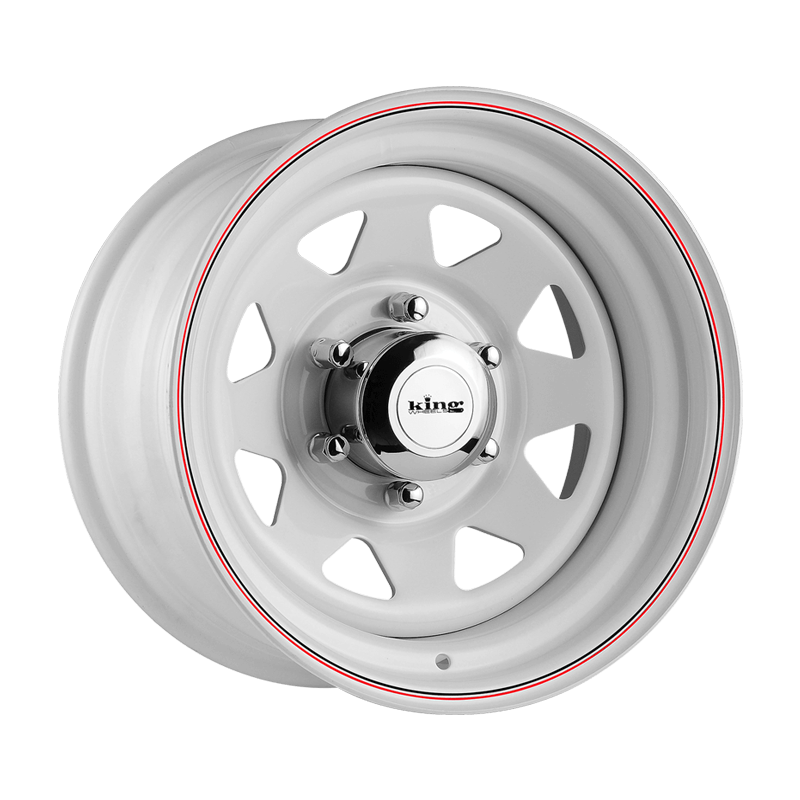

KING Terra wheels are renowned in the industry for their superior strength and quality of finish. Built tough to withstand Australia’s harshest conditions. Note: Nuts, caps and accessories are an optional extra.
Key Features | High load rating, Powder Coat finish, Wide fitment range, CBL compatible.
Key Features | High load rating, Powder Coat finish, Wide fitment range, CBL compatible.
