| Size | PCD | Hub Diameter | Offset | Alt. Stud Pattern | Load Rating | |
|---|---|---|---|---|---|---|
| 15″ | ||||||
| 15″ x 7″ | 5/139.7 | 111 | 0 | 1120KG | Select | |
| 15″ x 8″ | 5/139.7 | 111 | -23 | 1120KG | Select | |
| 15″ x 10″ | 5/139.7 | 111 | -44 | 1120KG | Select | |
| 16″ | ||||||
| 16″ x 8″ | 5/150 | 110.2 | 0 | 1400KG | Select | |
| 16″ x 8″ | 5/150 | 110.2 | -25 | 1400KG | Select | |
| 16″ x 8″ | 5/150 | 110.2 | -55 | 1400KG | Select | |
| 16″ x 8″ | 6/114.3 | 66.1 | 20 | 1200KG | Select | |
| 16″ x 8″ | 6/114.3 | 66.1 | 0 | 1200KG | Select | |
| 16″ x 8″ | 6/139.7 | 106.1 | 40 | 1200KG | Select | |
| 16″ x 8″ | 6/139.7 | 106.1 | 20 | 1200KG | Select | |
| 16″ x 8″ | 6/139.7 | 106.1 | 0 | 1200KG | Select | |
| 16″ x 8″ | 6/139.7 | 111 | -13 | 1200KG | Select | |
| 16″ x 8″ | 6/139.7 | 111 | -25 | 1200KG | Select | |
| 16″ x 10″ | 6/139.7 | 111 | -44 | 1200KG | Select | |
| 17″ | ||||||
| 17″ x 8″ | 5/120 | 65.1 | 30 | 1200KG | Select | |
| 17″ x 8″ | 5/150 | 110.2 | 0 | 1400KG | Select | |
| 17″ x 8″ | 5/150 | 110.2 | 30 | 1400KG | Select | |
| 17″ x 8″ | 6/114.3 | 66.1 | 20 | 1200KG | Select | |
| 17″ x 8″ | 6/114.3 | 66.1 | 0 | 1200KG | Select | |
| 17″ x 8″ | 6/139.7 | 111 | -25 | 1200KG | Select | |
| 17″ x 8″ | 6/139.7 | 106.1 | 0 | 1200KG | Select | |
| 17″ x 8″ | 6/139.7 | 106.1 | 15 | 1200KG | Select | |
| 17″ x 8″ | 5/139.7 | 106.1 | 30 | 1200KG | Select | |
| 17″ x 10″ | 6/139.7 | 111 | -44 | 1200KG | Select | |
Fitments
Description

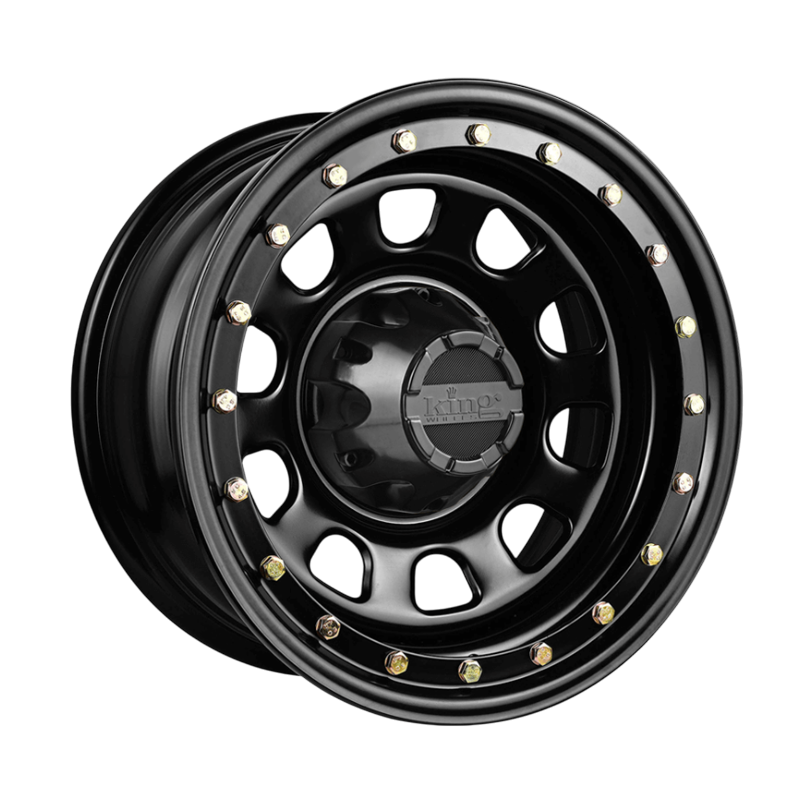

KING D-Locker was the 1st and original D-locker to roll out in Australia. Featuring D holed centre disc, an imitation beadlock with zinc bolts and powder coated in satin black, the King D-Locker was the original and still is the best. Note: Nuts, caps and accessories are an optional extra.
Key Features | Tried and tested product, Zinc bolts, CBL Compatible.
Key Features | Tried and tested product, Zinc bolts, CBL Compatible.
