Description

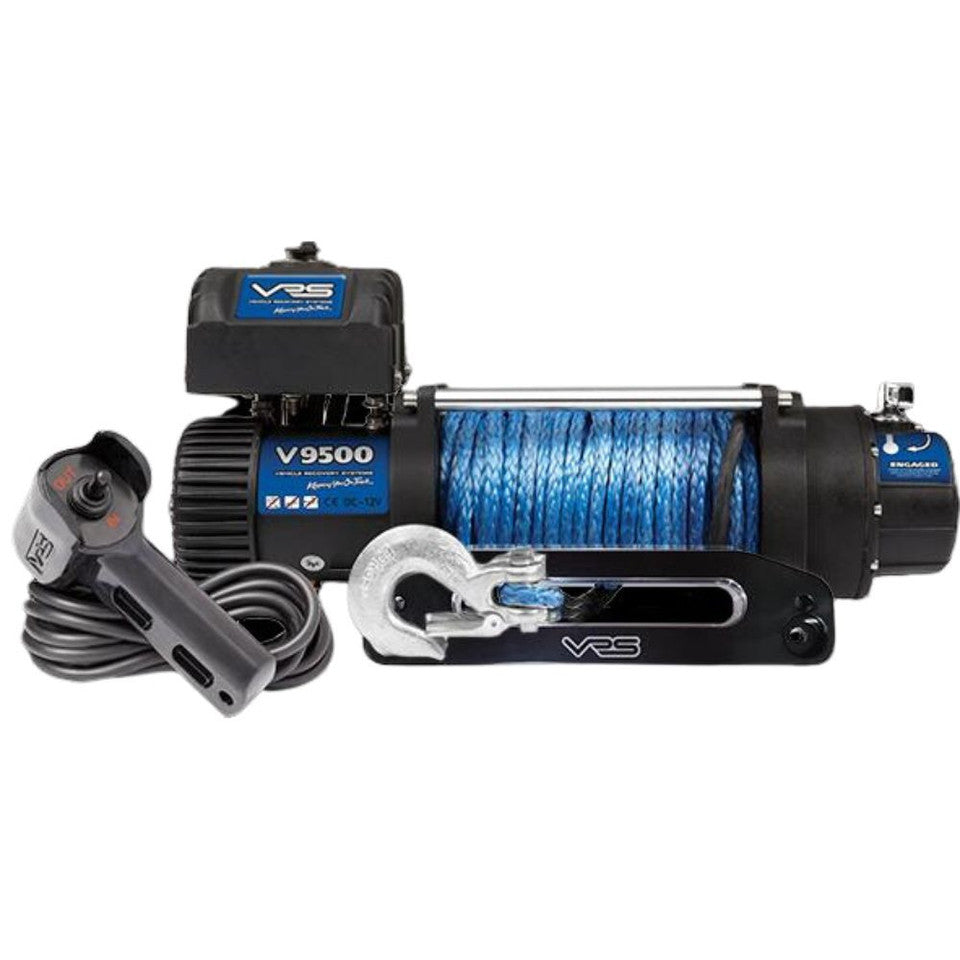

When you?re out there in the thick of it, you need some serious machinery on your side. With an impressive 4300kgs of pulling power and fast line speed under load, the VRS 9500lb winch is the one vehicle recovery winch no driver, from the novice to the serious off-roader, should be without. Even in the most extreme conditions, this tough nut has the muscle to haul your vehicle back on track-fast. Get serious with your safety and get yourself a VRS winch.
- IP68 Water & Dust rating
- Textured UV and corrosion resistant finish
- Sealed to resist water penetration
- Stainless steel hardware and fittings
- Heavy duty sealed high amperage contactor controller
- Multi-segmented cam activated brake
- Powerful pulling power
- Fast line speed under load
- Designed in Australia for the World
SPECIFICATIONS
| Line Pull | 9,500lb / 4,310 kg |
| Motor 12V | Series Wound 5.3hp/3.9kw 12v DC |
| Gear Train | 3 stage planetary gears |
| Gear Ratio | 216 : 1 |
| Freespool | Sliding ring gear |
| Brake | Automatic, in the drum |
| Battery | Recommended 650 CCA minimum for winching |
| Battery Lead | 25mm, 72? (1.83M) |
| Synthetic Rope Size | 9mm x 30m |
| Drum Size | 2.5? x 9.0? (64mm x?224mm) |
| Mounting Bolt Pattern | 10? x 4.5? (254mm x 114.3mm) |
| Dimensions | 23? x 6.6?x 8.4? (552mm x 168mm x 214mm) |
LINE PULL AND ROPE CAPACITY
| Layer of wire rope | Line Pull kg / lb | Total Rope on the Drum m/ft |
|---|
| 1st Layer | 4,310 / 9,500 | 6 / 19.6 |
| 2nd Layer | 3,629 / 8,000 | 13.2 / 43 |
| 3rd Layer | 3,266 / 7,200 | 22 / 72 |
| 4th Layer | 2,994 / 6,000 | 30 / 100 |
LINE SPEED AND AMP. DRAW*?
| Line Pull kg/lb | Line Speed mpm/fpm | Amp. Draw 12V |
| No Load | 10.8 / 35.4 | 80 |
| 907 / 2,000 | 4.5 / 14.76 | 160 |
| 1,814 / 4,000 | 3.7 / 12.14 | 220 |
| 2,722 / 6,000 | 2.98 / 9.79 | 280 |
| 3,629 / 8,000 | 2.6 / 8.53 | 320 |
| 4,310 / 9,500 | 2.2?/ 7.2 | 360 |
?
(*1ST LAYER OF ROPE ON THE DRUM)
STANDARD ACCESSORIES
- Detachable Contactor Pack
- Remote control
- Synthetic Rope with Hook
- Black Hawse fairlead
- 1.83m (6?) 25mm battery lead
- Handsaver strap
